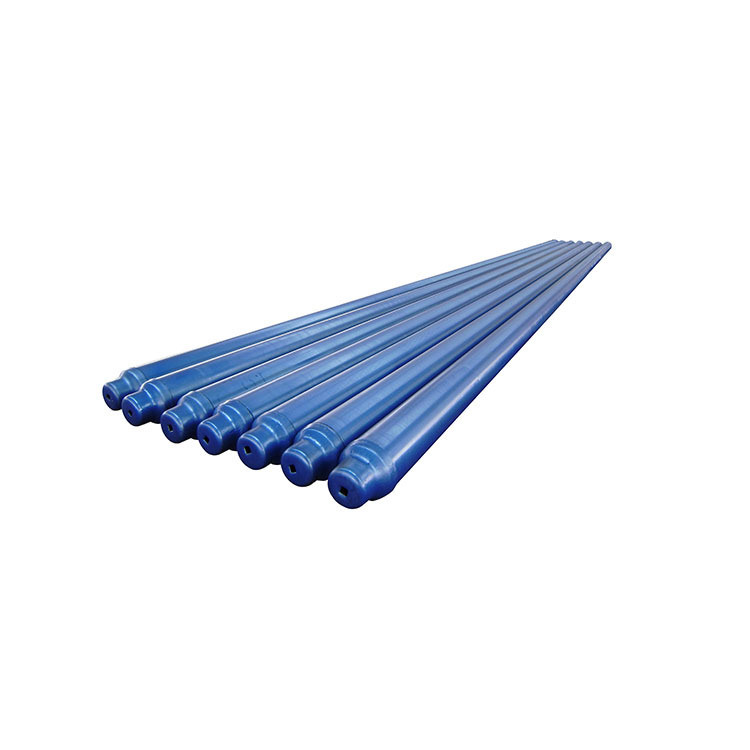

104.8 mm Outside Diameter 50.8 mm Inside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

Détails de produit

Nom de produit:

Collier de perceuse

Tableau de numéros et de liaisons:

NC31-41(2-7/8IF)

Démétrage extérieur ((points):

4-1/8

Diamètre extérieur (millimètres):

104.8

Diamètre intérieur ((points):

diamètre intérieur (millimètres):

50,8

Longueur (mm):

9150

Démètre de la béquille ((mm):

100.4

Ratio de résistance à la flexion:

2 43:1

Produits connexes

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

Obtenez le meilleur prix

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

Obtenez le meilleur prix

Oil Well Drilling Oil Field Equipment NC44-60 Drill Collar 6 Inch Outside Diameter

Obtenez le meilleur prix

Drill Collar NC35-47 9150 mm Length for Oil Well Drilling Oil Field Equipment

Obtenez le meilleur prix

contactez-nous

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact maintenant

Description de produit

COMPANY PROFILE

104.8 mm Outside Diameter 50.8 mm Inside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

104.8 mm Outside Diameter 50.8 mm Inside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 1

CERTIFICATES

PRODUCT DESCRIPTION

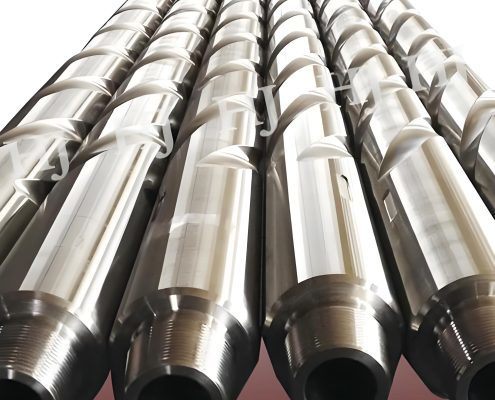

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

104.8 mm Outside Diameter 50.8 mm Inside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 3

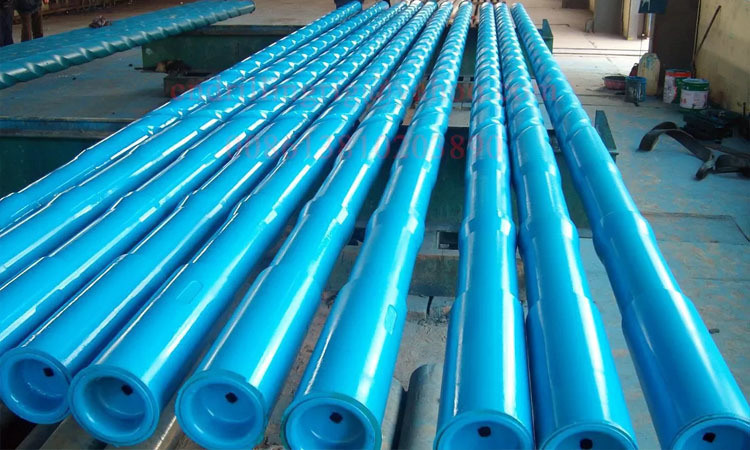

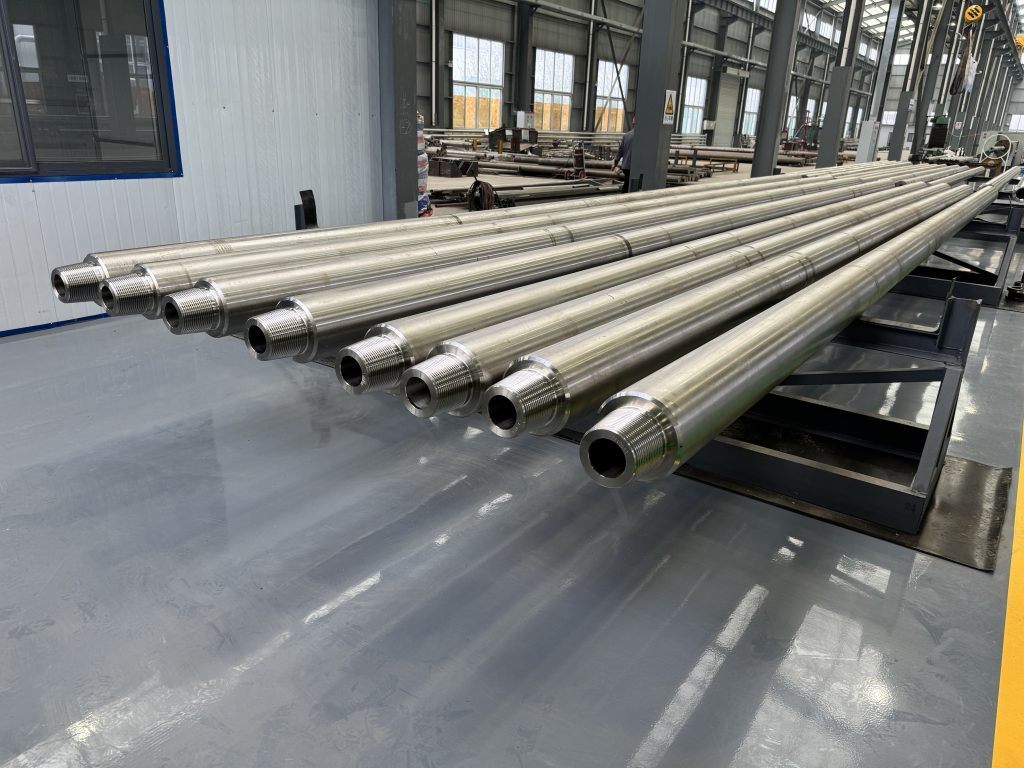

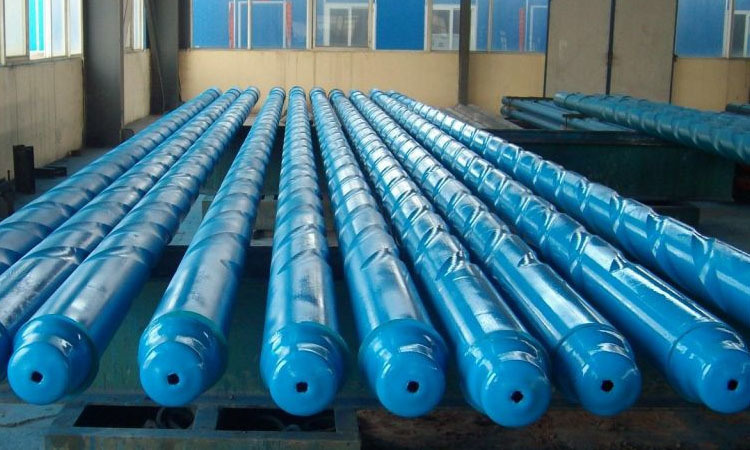

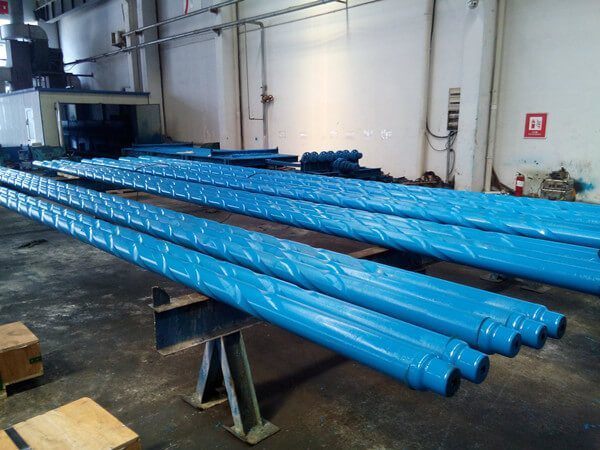

FACTORY PHOTOS

104.8 mm Outside Diameter 50.8 mm Inside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 9

EXHIBITION

104.8 mm Outside Diameter 50.8 mm Inside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 10

PACKAGE & TRANSPORTATION
