API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

114.3mm Float Shoe

150°C Seal Float Collar

204°C Seal Cementing Float Equipment

Lieu d'origine:

Jiangsu, Chine

Nom de marque:

SWS

contactez-nous

Demandez une citation

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Détails de produit

Dimension:

50*30*30

Poids:

10 kg

Composants de base:

Soupape

Type de soupape:

Ventilateur simple et double

Type de traitement:

Forgeage

Spécification:

2 à 3/8 à 20"

Type de fil:

Les États membres doivent fournir à la Commission les informations suivantes:

Grade d'acier:

N80\L80\P110

Alésage:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Id de l'alésage:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Alésage:

2 ", 2 3/8"

Type de fil:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Cote de pression:

70MPA

Cote de température:

204°C

Vanne:

70 mm et 90 mm

Produits connexes

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Obtenez le meilleur prix

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Obtenez le meilleur prix

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Obtenez le meilleur prix

Tête de cimentation à double bouchon à haute pression API 5CT personnalisable avec pression de travail de 35 MPa et garantie d'un an

Obtenez le meilleur prix

contactez-nous

86-519-83553967

Leo@service-js.com

86-519-83553967

Contact maintenant

Description de produit

API 4-1/2" 114.3mm Standard Nose Float Shoe Equipment

High-performance reamer shoe, float shoe, and float collar for casing operations.

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Essential component for primary cementing operations in casing equipment
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for enhanced structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic valve components
Standard seal rated to 150°C with optional 204°C seal available
Fiber phenolic valve body module withstands 70MPa and 204°C
High-quality Canadian phosphor bronze C510 springs with excellent restoring force
HNBR plunger seal top rated for 70MPa and 204°C operation

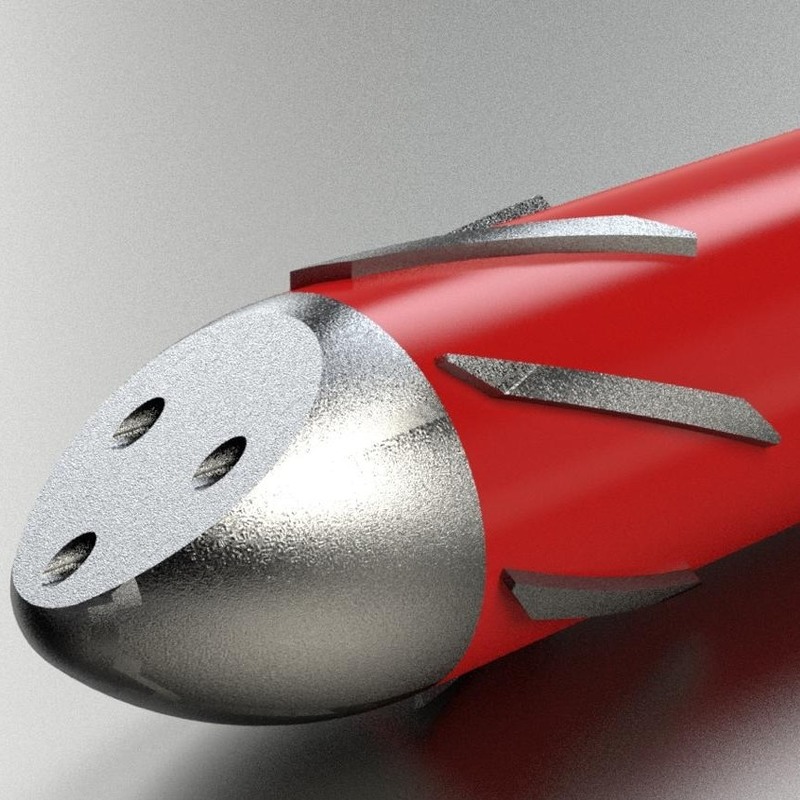

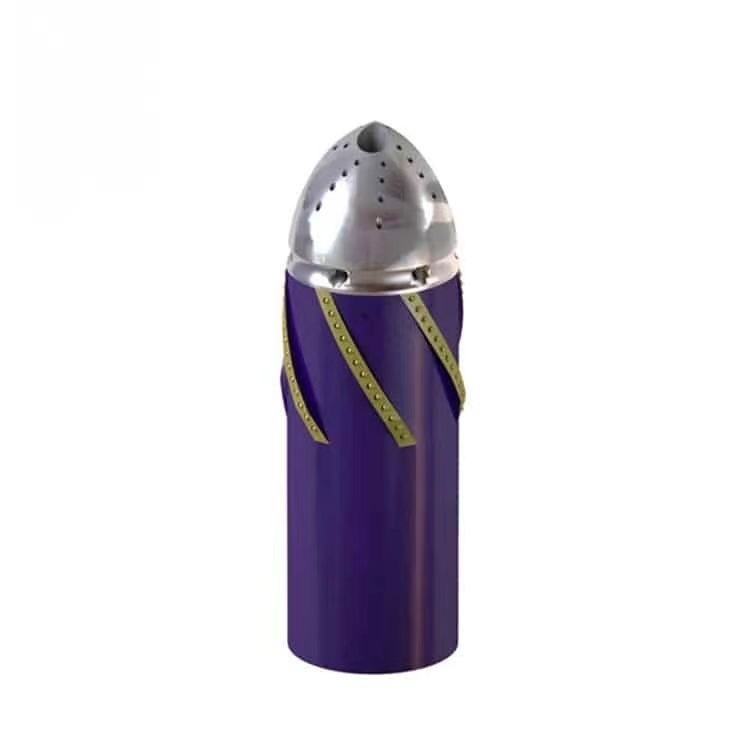

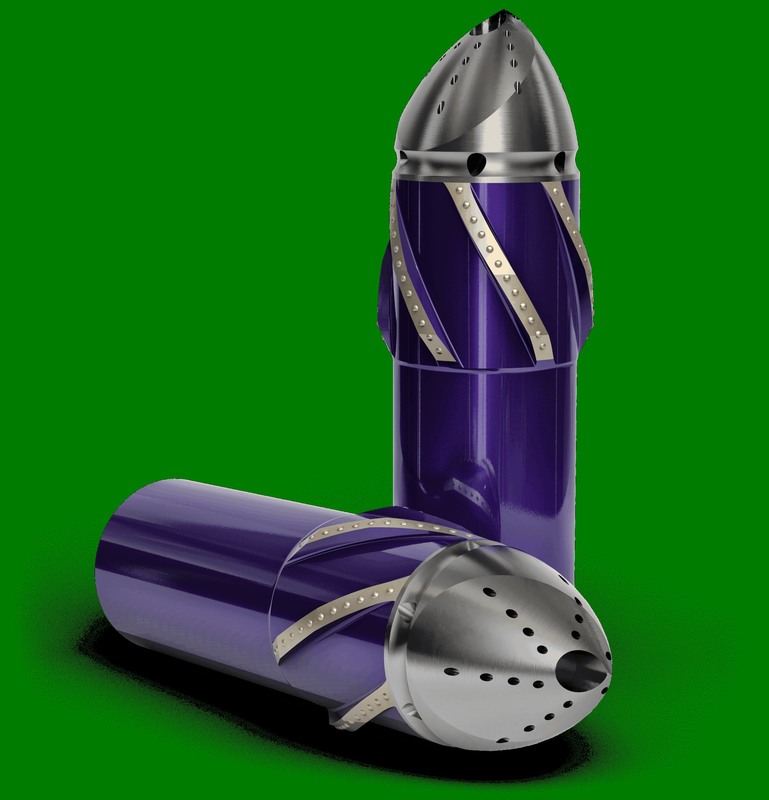

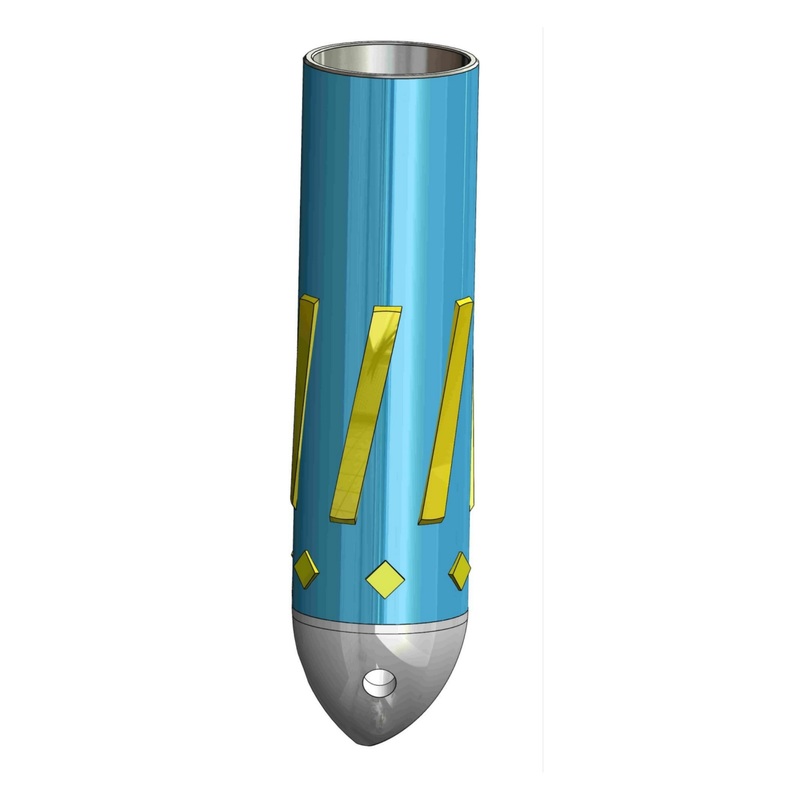

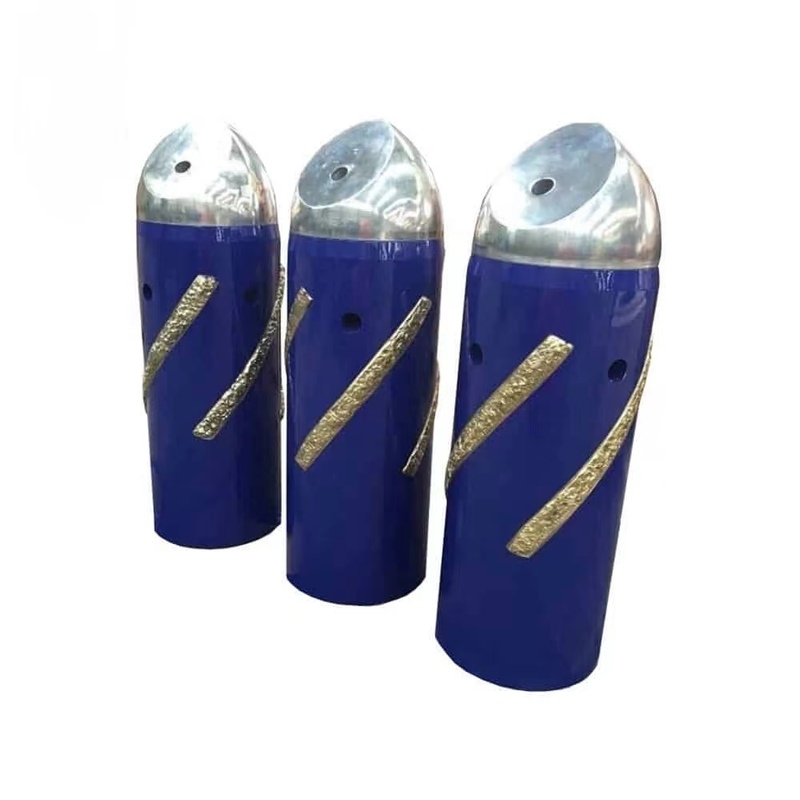

Product Images

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate in your email for priority handling.

Q2: Could I have prices of your products?

A: Please send us an email with your requirements. We will respond within 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, our QC department performs inspections at each production stage and on all finished products before shipping.

Q5: What about the lead time for the mass production?

A: Production lead time depends on order quantity and seasonal factors when the order is placed.
