API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

139.7mm Float Collar

150°C Seal Float Shoe

204°C Seal Cementing Float Equipment

Lieu d'origine:

Jiangsu, Chine

Nom de marque:

SWS

contactez-nous

Demandez une citation
API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2
Détails de produit
Dimension:
50*30*30
Poids:
10 kg
Composants de base:
Soupape
Type de soupape:
Ventilateur simple et double
Type de traitement:
Forgeage
Spécification:
2 à 3/8 à 20"
Type de fil:
Les États membres doivent fournir à la Commission les informations suivantes:
Grade d'acier:
N80\L80\P110
Alésage:
6 "
Id de l'alésage:
4 3/4 "
Alésage:
2 "
Type de fil:
5 1/2 "LCSG
Cote de pression:
4351 lb (in2)
Cote de température:
204°C
Matériel:
fibre phénolique
Produits connexes
Bon prix API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling en ligne

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Obtenez le meilleur prix
Bon prix API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling en ligne

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Obtenez le meilleur prix
Bon prix API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Obtenez le meilleur prix
Bon prix Tête de cimentation à double bouchon à haute pression API 5CT personnalisable avec pression de travail de 35 MPa et garantie d'un an en ligne

Tête de cimentation à double bouchon à haute pression API 5CT personnalisable avec pression de travail de 35 MPa et garantie d'un an

Obtenez le meilleur prix
contactez-nous
86-519-83553967
Leo@service-js.com
86-519-83553967
Contact maintenant
Description de produit
API Standard 5-1/2" (139.7mm) Oilfield Cementing Tools - Casing Stab-In Float Collar and Float Shoe
High-performance float equipment designed for primary cementing operations in oilfield applications.
API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 0 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 1 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 2
Technical Specifications
Name Size (in) Bore O.D. (in) Bore I.D. (in) Min Bore Parameter (in) Thread Type lb/in²
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Key Features and Benefits
  • Essential component of casing equipment for primary cementing operations
  • Guides casing to total depth and prevents contaminated mud entry
  • Provides landing point for casing wiper plugs
  • Reinforces lower end of casing string for improved structural integrity
  • Ensures precise cement slurry displacement
  • Hi-Flow valves reduce fluid erosion and minimize pressure drop
  • Available in 70mm and 90mm sizes
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic for 70MPa and 204°C operation
  • High-quality Canadian phosphor bronze springs with excellent restoring force

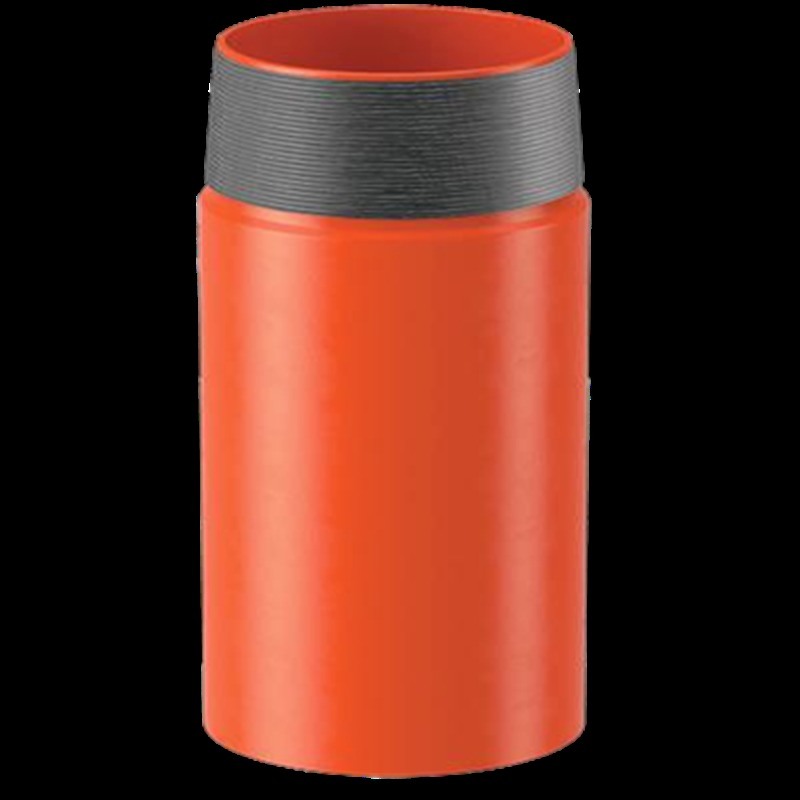

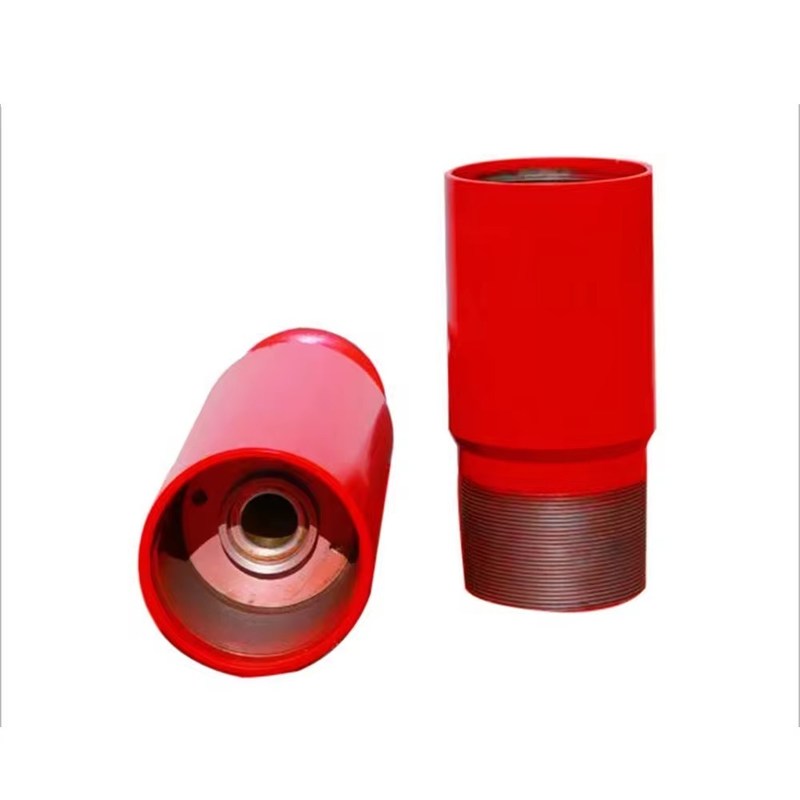

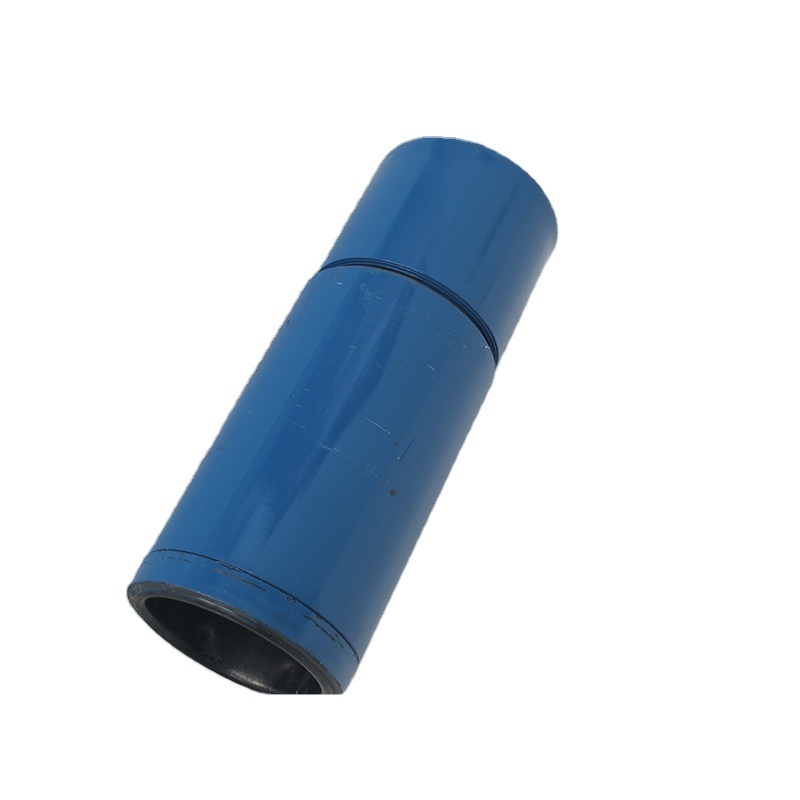

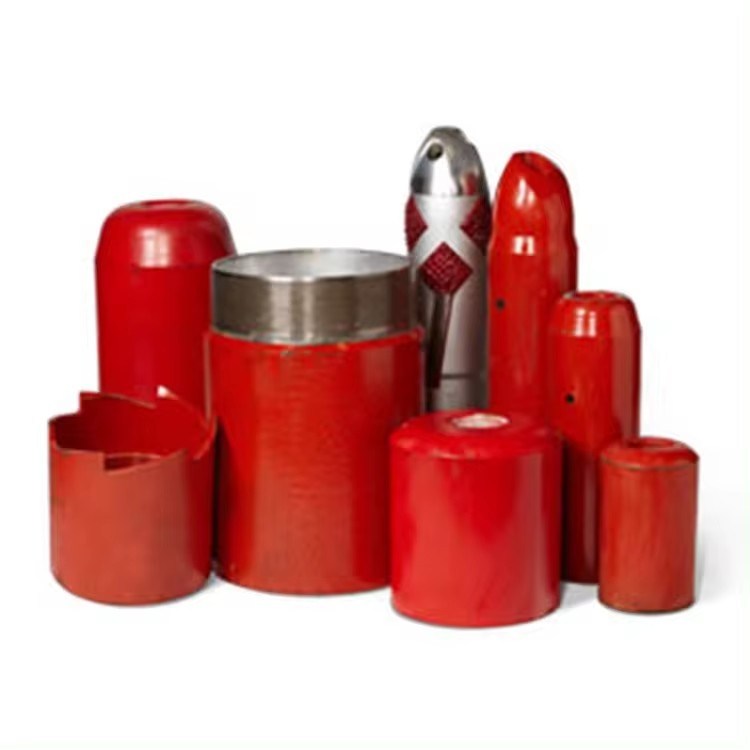

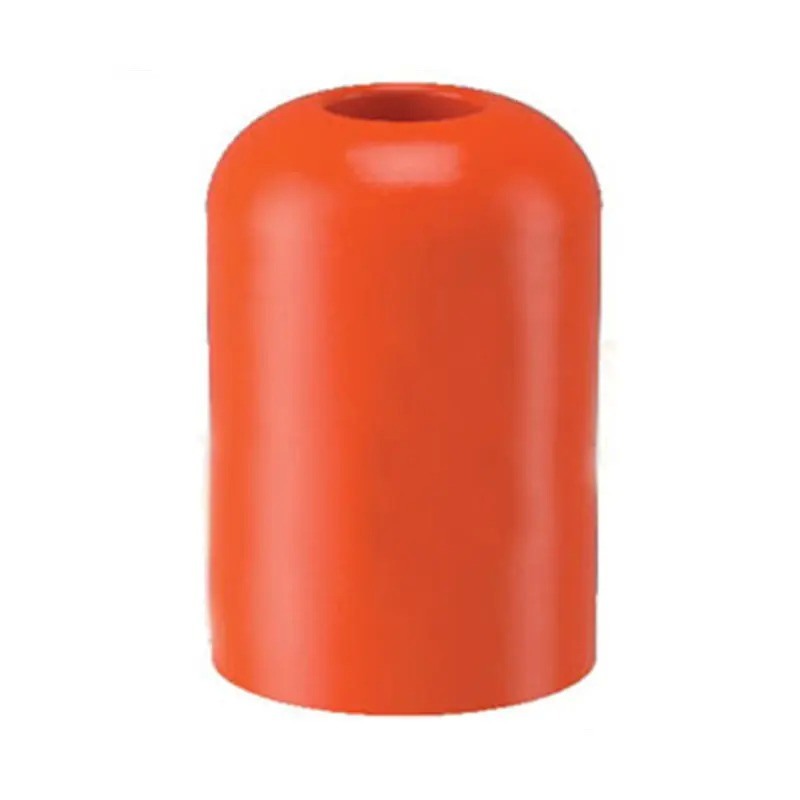

Product Images
API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 3 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 4 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 5 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 6 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 7 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 8 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 9 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 10 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 11 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 12
Frequently Asked Questions
Q1: When can I get the price?
A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.
Q2: Could I have prices of your products?
A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours.
Q3: Can I get a lower price if I order large quantities?
A: Yes, we offer volume discounts for larger quantity orders.
Q4: Do you inspect the finished products?
A: Yes, our QC department conducts thorough inspections at each production stage and before shipment.
Q5: What about the lead time for mass production?
A: Production lead times vary depending on order quantity and seasonal demand factors.
