API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

API standard float collar

oilfield drilling float shoe

cementing float equipment casing

Lieu d'origine:

Jiangsu, Chine

Nom de marque:

SWS

contactez-nous

Demandez une citation
API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling
Détails de produit
Dimension:
5"-20"
Poids:
10 kg
Type de fil:
STC LTC BTC EUE NUE XC
Matériel:
Alliage en acier au carbone / en aluminium
Composants de base:
Soupape
Alésage:
6 ", 7 5/8", 10 5/8 ", 14 3/8"
Id de l'alésage:
4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"
Alésage:
2 ", 2 3/8"
Cote de pression:
70MPA
Cote de température:
204°C
Vanne:
70mm, 90mm
Sceller:
Hnbr
Matériau de printemps:
Phosphore Bronze C510
Capacité de production:
≥ 10000 pcs par mois
MOQ:
1
Produits connexes
Bon prix API Standard 2-3/8

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

Obtenez le meilleur prix
Bon prix API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment en ligne

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

Obtenez le meilleur prix
Bon prix API Standard Float Collar 5 1/2

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Obtenez le meilleur prix
Bon prix API Standard Float Shoes 5-20in for Oilfield Drilling Cementing en ligne

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

Obtenez le meilleur prix
contactez-nous
86-519-83553967
Leo@service-js.com
86-519-83553967
Contact maintenant
Description de produit
High Quality API Cementing Tools - Casing Float Collar & Float Shoe

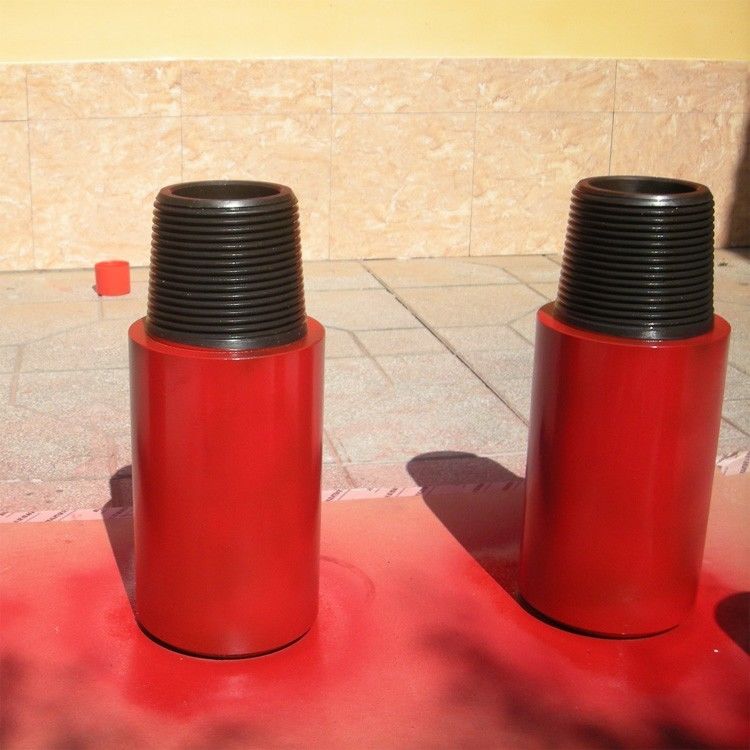

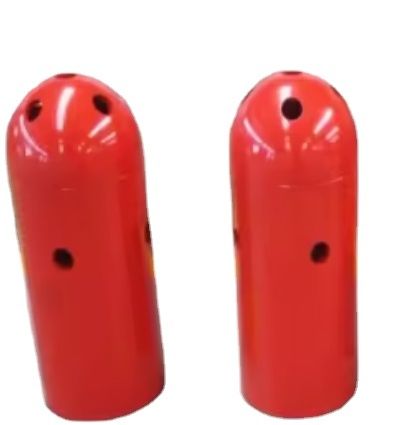

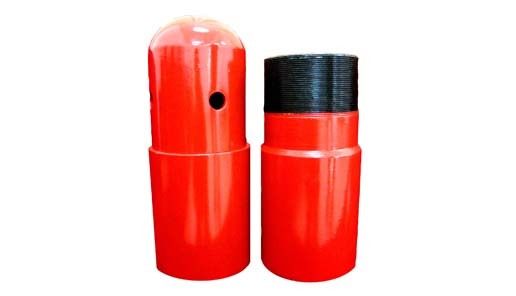

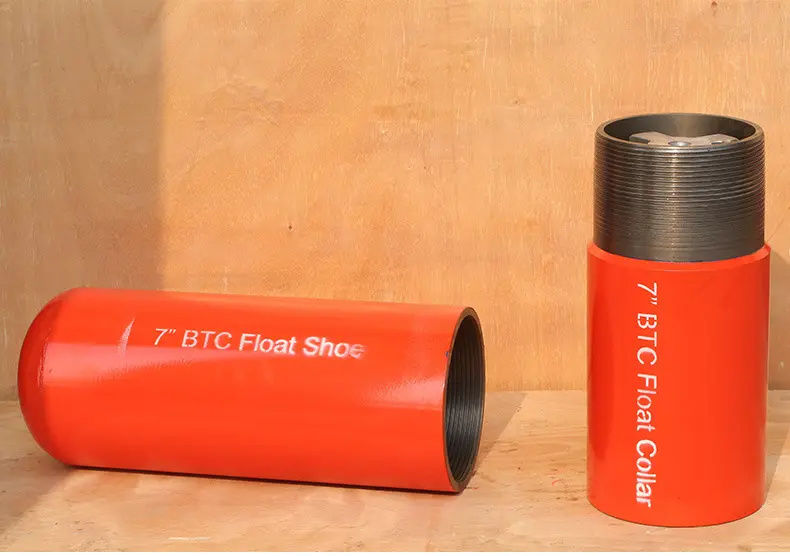

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 0 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 1 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 2
Product Specifications
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in²)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Key Features and Benefits
  • Essential components for primary cementing operations in oilfield drilling
  • Guides casing to total depth while preventing contaminated mud entry
  • Provides landing point for casing wiper plugs
  • Reinforces lower end of casing string for improved structural integrity
  • Ensures precise cement slurry displacement accuracy
  • Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal capability
Technical Specifications

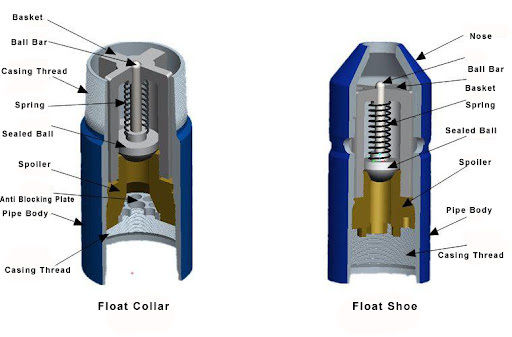

Valve body constructed with fiber phenolic material, rated for 70MPa and 204°C seal. Spring components sourced from Canada Victory Spring Company, made from phosphor bronze C510 material for high restoring force and drillability. Plunger seal top molded with HNBR, rated for 70MPa and 204°C operation.

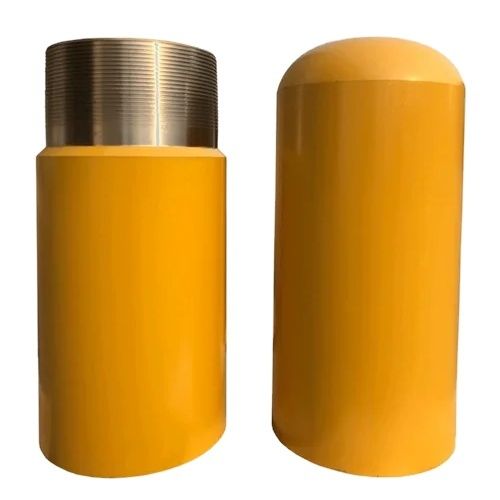

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 3 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 4 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 5 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 6 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 7 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 8 API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling 9
Frequently Asked Questions
When can I get the price?
We typically provide quotes within 24 hours of receiving your inquiry. For urgent pricing requests, please indicate this in your email for priority handling.
Could I have prices of your products?
Yes, please contact us via email for current pricing. We respond to all inquiries within 24 hours.
Can I get a lower price if I order large quantities?
Yes, we offer volume discounts for larger quantity orders.
Do you inspect the finished products?
Yes, our QC department conducts thorough inspections at each production stage and performs final quality checks before shipping.
What about the lead time for mass production?
Production lead times vary based on order quantity and seasonal demand. We provide accurate timelines when processing your order.
